High Accuracy 0.25t 0.5t 1t 1.5t 2t 2.5t 3.5t 7.5t 10 ton Load Cell Weight Sensor

FOB Reference Price:Get Latest Price
  • >=5 Pieces
    $20.00
Lead Time:
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Samples:
$20.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
OSEN
Model Number:
OS-101
Output:
Analog SENSOR
Theory:
Resistance Sensor
Usage:
PRESSURE SENSOR
Accuracy:
3000e.
Accuracy Class:
OIML C3
Sensitivity (Cn):
3.0 ± 0.003mv/V
Non-linearity: load cell:
± 0.02% F.S.
Creep (30 min):
± 0.02% F.S
Input Impedance:
385 ±10 Ω
output Impedance:
351 ±2 Ω
Safe Overload:
150% F.S
Destructive Load:
250% F.S
Excitation Voltage:
4~12VDC Max.15VDC
Packaging & Delivery
Packaging Details
Packaging Details:Foam and carton
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 10 To be negotiated
Video Description


Product Description

 Specification:



Rated Capacity

0.25/0.5/1/1.5/2/2.5/3/5/7.5/10t

0.1/0.25/0.5/1/1.5/2/2.5/3/5/7.5/10/15/20klb

Accuracy Class

OIML C3

NTEP:Ⅲ,nmax:5000,Multiple Cell

Rated Output3.0±0.003mV/V
Total Error±0.02%F.S
Creep(30min)±0.02%F.S
Input Resistance385±10Ω
Output Resistance351±2Ω
Operating Temperature -10 - +40℃
Safe Overload150%F.S
Destructive Load200%F.S
Excitation Recommend4-12VDC  Max:15VDC
Cable Length

1-5m

4 wires with shield

Exc+(red)Exc-(black)

Sig+(green)Sig-(white)
ConstructionAlloy Steel or Stainless steel,IP67
Application ForFloor scales,pallet scales,weighing module etc.



OS-101



Same Recommendation

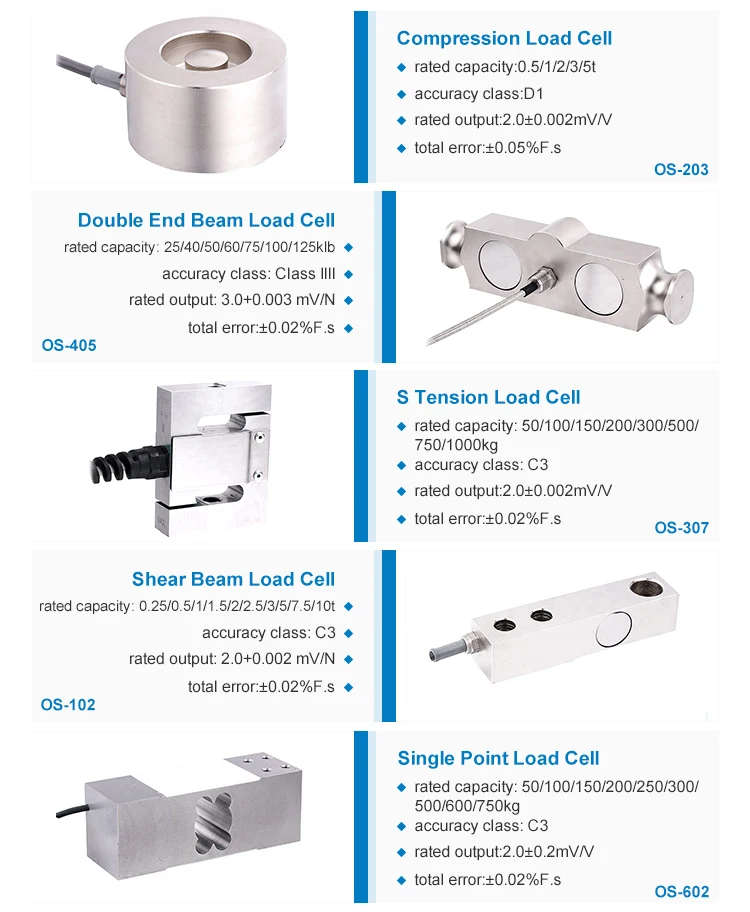

We have different types of sensors from 20kg-400t, different kinds of sensors and matching power supply and junction box, etc.,

here are new explosion-proof products for you to choose, you can choose to contact us for your recommendation



other series:



If You Are Interested In Our Products, Or Want To R&D Some New Items,Free Samples >Click Here To Contact<

Related Products

Solution
Our Advantages

our advantages

Certifications



Company Information

2

Packaging & Shipping
FAQ

1. What essential information is needed for product selection?
    Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.


2. How will you ensure quality of your products?
    A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.

    B. One year warranty and life time free consult to any needs related with our product.


3. What terms of payment is acceptable?
    T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.


4. When production could be arranged?
    As soon as the payment was received.
